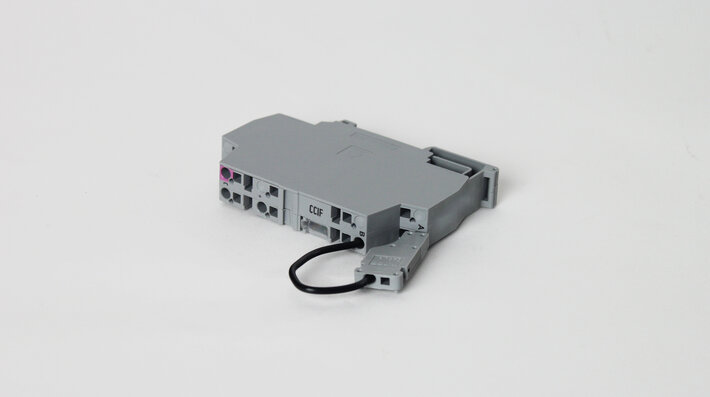

The CCIF module ensures safe monitoring of a mains monitoring loop (24 V DC) in safety-related installations. In case of interruption or short circuit, it activates emergency mode and signals the issue via LED and system display. No fire-resistant wiring required. Designed for use with multiControl plus and MDC systems. Easy to retrofit and versatile thanks to its potential-free relay contact.
Product data
Material
Polycarbonate
Weight
0.05 kg
Housing color
Light grey
Customs tariff number
85389091
Protection type (IP)
IP20
Protection type (IP)
IP20
Depth
63 mm
Insulation class
2
Width
15 mm
Min. temperature
0 °C
Height
92 mm
Max. temperature
35 °C
Material
Polycarbonate
Housing color
Light grey
Protection type (IP)
IP20
Depth
63 mm
Width
15 mm
Height
92 mm
Weight
0.05 kg
Customs tariff number
85389091
Protection type (IP)
IP20
Insulation class
2
Min. temperature
0 °C
Max. temperature
35 °C
