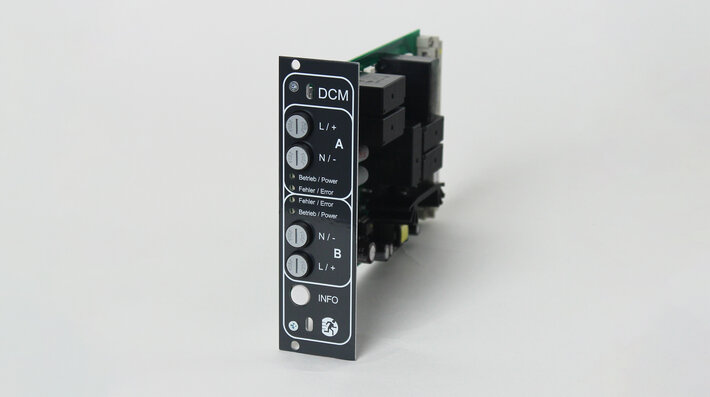

DCM42

circuit module

The DCM12E, DCM32, DCM42 and DCM62 circuit modules are powerful expansion modules for the safety lighting systems of the multiControl plus, midiControl plus, miniControl XL plus, miniControl plus and microControl plus series. With two separately monitored circuits each, they provide a reliable supply with a maximum output current of 1 A (DCM12E), 3 A (DCM32), 4 A (DCM42) or 6 A (DCM62).

Thanks to integrated individual luminaire query, self-calibrating circuit monitoring and earth fault and fault voltage monitoring (when the circuit is not active), the modules ensure maximum operational reliability. All relevant status data can be conveniently retrieved at any time on the central computer via the integrated INFO button.

Ideal for standard-compliant, flexible and maintenance-friendly emergency lighting.

Product data

Material
Aluminium, Polycarbonate
Width
128 mm
Housing color
Anthracite
Height
36 mm
Input voltage AC
230 V
Depth
175 mm
Input frequency
50 / 60 Hz
Weight
0.29 kg
Power consumption
0,4 W
Volume
0.0008064
Depth
175 mm
Color
Anthracite
Width
128 mm
Material
Aluminium, Polycarbonate
Height
36 mm
Nominal output
860 W
Weight
0.29 kg
Max. Output voltage DC
216 V
Customs tariff number
85389091
label.zuordnungsspeicher.MaxOutputVoltageAC
230 V
Input frequency
50 / 60 Hz
input voltage AC
230 V
Power consumption
0,4 W
Min. temperature
0 °C
Max. temperature
35 °C
Weight incl. packaging
0.29
Material
Aluminium, Polycarbonate
Housing color
Anthracite
Input voltage AC
230 V
Input frequency
50 / 60 Hz
Power consumption
0,4 W
Depth
175 mm
Width
128 mm
Height
36 mm
Weight
0.29 kg
Customs tariff number
85389091
Width
128 mm
Height
36 mm
Depth
175 mm
Weight
0.29 kg
Volume
0.0008064
Color
Anthracite
Material
Aluminium, Polycarbonate
Nominal output
860 W
Max. Output voltage DC
216 V
label.zuordnungsspeicher.MaxOutputVoltageAC
230 V
Input frequency
50 / 60 Hz
input voltage AC
230 V
Power consumption
0,4 W
Min. temperature
0 °C
Max. temperature
35 °C
Weight incl. packaging
0.29
