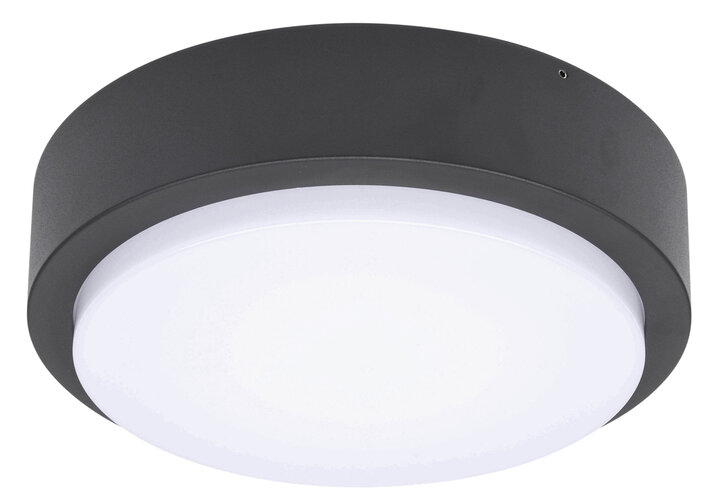

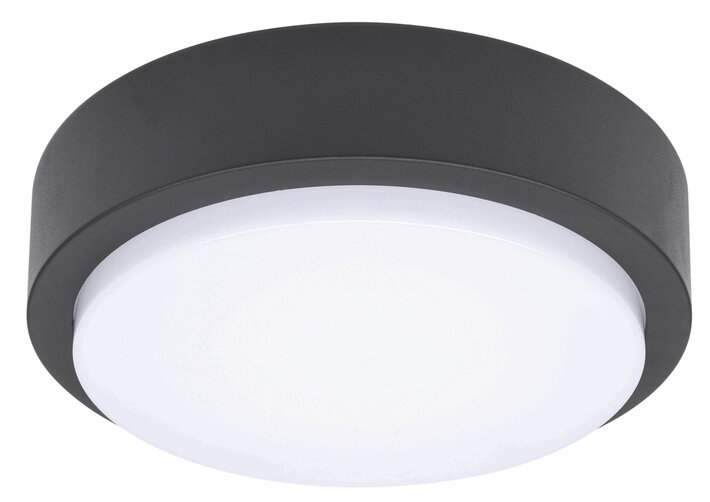

LED exterior façade luminaire, Tondo series. Housing made from die-cast aluminium, dark grey or white, powder-coated, IP54. Diffuser made from plastic (PC), opal, UV-stabilised. Operating unit installed (can be switched). Version with CASAMBI® Bluetooth control available.
Product data
Diameter
280 mm
System performance
13 W
Product dimensions Height
80 mm
Input voltage AC
220-240V / 50-60Hz V
Product weight
1.84 kg
Power factor
0.95 PF
Packaging dimensions Length
330 mm
Electrical design
with internal control gear, Switchable
Packaging dimensions Width
330 mm
Light source
LED
Packaging dimensions Height
100 mm
Rated luminous flux
985 lm
Weight incl. packaging
1.95 kg
Colour rendering index
> 80 Ra
Housing material
Aluminium

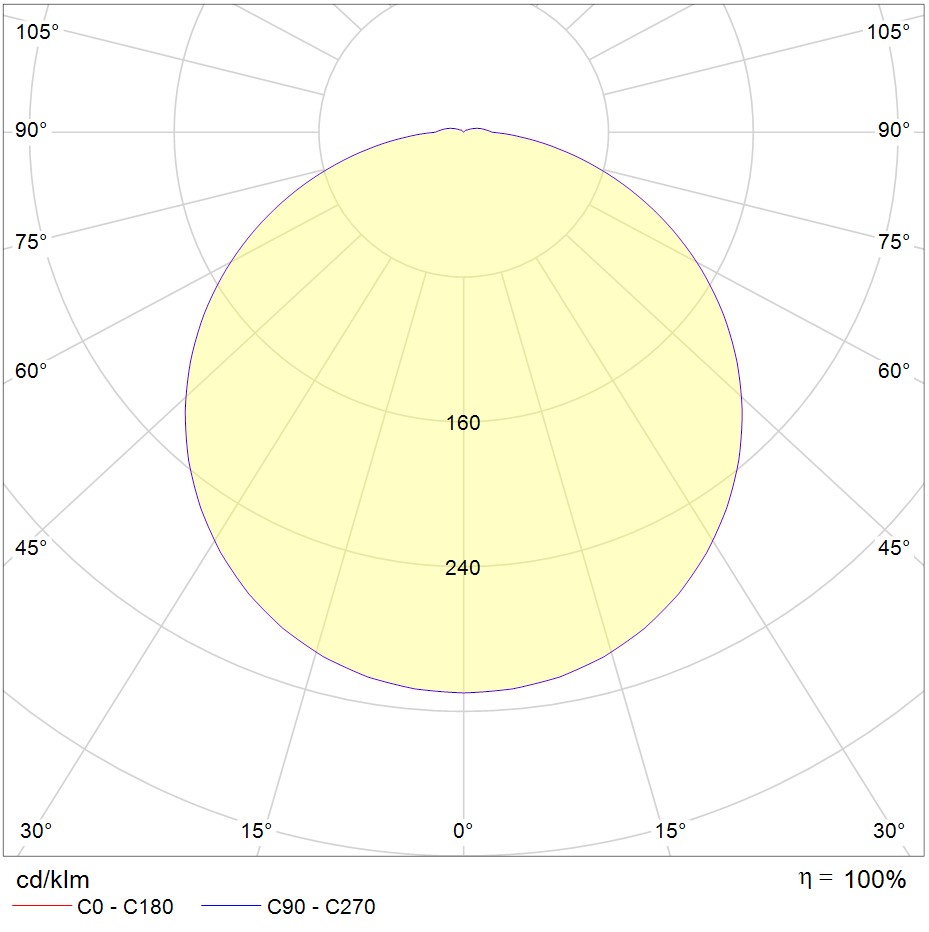

Beam angle
119 °
Certification
CE
Color temperature
3000 K
Protection type (IP)
IP54
Light color
830
UGR
24.2
Service life
50000 h, L80
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
40 °C
Mounting
Universal
Color
Black
Diameter
280 mm
Product dimensions Height
80 mm
Product weight
1.84 kg
Packaging dimensions Length
330 mm
Packaging dimensions Width
330 mm
Packaging dimensions Height
100 mm
Weight incl. packaging
1.95 kg
Housing material
Aluminium
Certification
CE
Protection type (IP)
IP54
System performance
13 W
Input voltage AC
220-240V / 50-60Hz V
Power factor
0.95 PF
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
985 lm
Colour rendering index
> 80 Ra
Beam angle
119 °
Color temperature
3000 K
Light color
830
UGR
24.2
Service life
50000 h, L80
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
40 °C
Mounting
Universal
Color
Black
