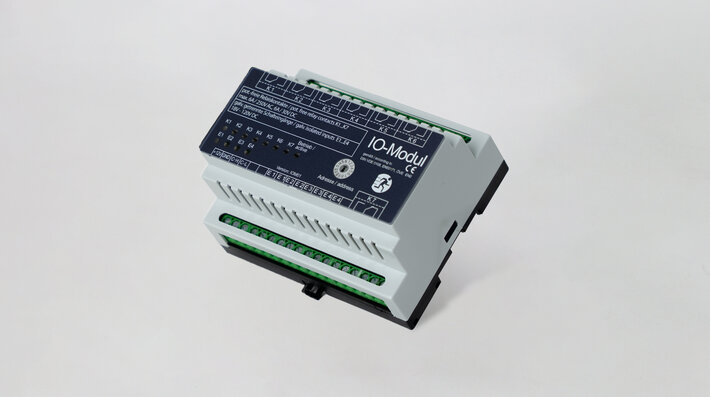

The IO-module is the versatile expansion unit for emergency lighting systems of the multiControl plus and MDC series. With 7 potential-free relay outputs and 4 galvanically isolated inputs, it enables precise monitoring and control of various device states – such as mains or battery operation, faults, or battery deep discharge.
The inputs support integration of external devices like mode selectors, fan monitoring, or emergency shutdown controls. Up to 5 IO-modules can be integrated per system – making it ideal for connecting to building management systems or extended mimic panels.
Product data
Material
Polycarbonate
Height
90 mm
Housing color
Anthracite
Depth
64,5 mm
Protection type (IP)
IP20
Weight
0.24 kg
Temperature range
-10 °C to 40 °C
Volume
0.000609525
Depth
64,5 mm
Color
Anthracite
Width
105 mm
Material
Polycarbonate
Height
90 mm
Connection cross-section
0,5-2,5 mm²
Weight
0.24 kg
Switching input
Yes
Customs tariff number
85389091
Input voltage DC
12 V
Width
105 mm
Switching output
250V AC/1500W - 30V DC/180 W
Min. temperature
-10 °C
Max. temperature
40 °C
Protection type (IP)
IP20
Insulation class
2
Weight incl. packaging
0.24
Material
Polycarbonate
Housing color
Anthracite
Protection type (IP)
IP20
Temperature range
-10 °C to 40 °C
Depth
64,5 mm
Width
105 mm
Height
90 mm
Weight
0.24 kg
Customs tariff number
85389091
Width
105 mm
Height
90 mm
Depth
64,5 mm
Weight
0.24 kg
Volume
0.000609525
Color
Anthracite
Material
Polycarbonate
Connection cross-section
0,5-2,5 mm²
Switching input
Yes
Input voltage DC
12 V
Switching output
250V AC/1500W - 30V DC/180 W
Min. temperature
-10 °C
Max. temperature
40 °C
Protection type (IP)
IP20
Insulation class
2
Weight incl. packaging
0.24
