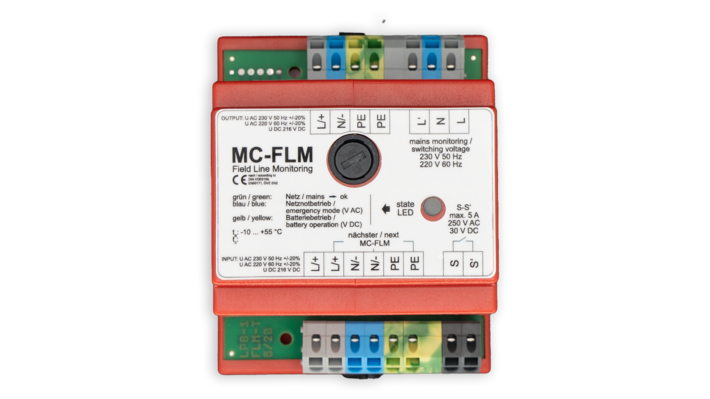

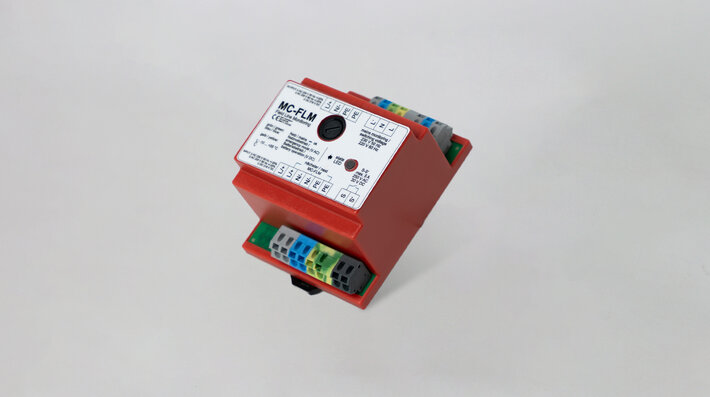

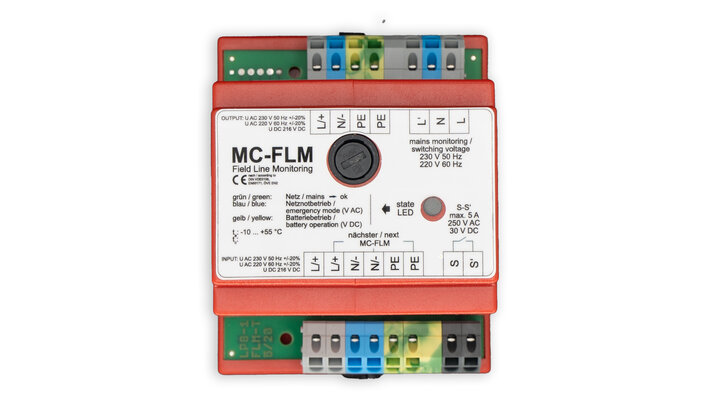

The Field Line Monitor MC-FLM is a versatile module for monitoring a local AC power network and for switching luminaires or luminaire groups. Each module forms its own group, allowing for collective switching – for example, together with the general lighting.
The MC-FLM is suitable for use with central battery systems, with full functionality available when used in combination with the multiControl plus series.
Equipped with an integrated single-phase mains monitoring input, a switching input, AC/DC evaluation of the emergency lighting voltage, and a multi-colour status LED, the MC-FLM ensures reliable operation and clear status indication.
Product data
Material
Polycarbonate
Monitoring
Included
Input voltage AC
230 V
Connection cross-section
0,5-2,5 mm²
Input frequency
50 / 60 Hz
Switching input
Yes
Temperature range
-20 °C to 50 °C
min. Input voltage AC
230 V
Depth
72 mm
Input frequency
50 / 60 Hz
Width
96 mm
Input voltage DC
216 V
Height
54 mm
Max. Output voltage DC
216 V
Weight
0.116 kg
Nominal output
650 VA/500 W
Customs tariff number
85389091
Input frequency
50 / 60 Hz
Power factor
0,77 PF
input voltage AC
230 V
Material
Polycarbonate
Input voltage AC
230 V
Input frequency
50 / 60 Hz
Temperature range
-20 °C to 50 °C
Depth
72 mm
Width
96 mm
Height
54 mm
Weight
0.116 kg
Customs tariff number
85389091
Power factor
0,77 PF
Monitoring
Included
Connection cross-section
0,5-2,5 mm²
Switching input
Yes
min. Input voltage AC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Max. Output voltage DC
216 V
Nominal output
650 VA/500 W
Input frequency
50 / 60 Hz
input voltage AC
230 V
