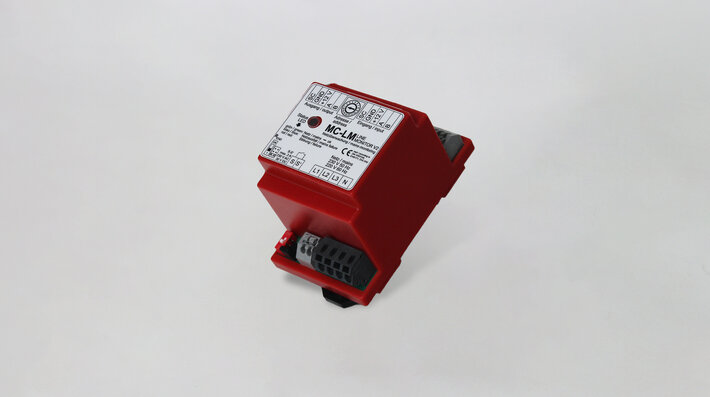

The multiControl Line Monitor (MC-LM) is the professional solution for monitoring three-phase power supplies in general lighting systems. Specifically designed for integration with multiControl emergency lighting systems, it reliably detects mains failures or severe voltage drops (below 195 V AC).
Up to 16 MC-LM modules can be connected in series to a central unit via the integrated BUS system – no E30 cabling required. Status is indicated via LED, and fault messages or positions are displayed directly on the central device. With address coding and end-of-line resistor activation, the system is easy to expand and configure.
Product data
Material
Polycarbonate
Width
96 mm
Protection type (IP)
IP20
Height
54 mm
Input voltage AC
230 V
Depth
54 mm
Input frequency
50 Hz
Weight
0.078 kg
Temperature range
-10 °C to 40 °C
Volume
0.000279936
Depth
54 mm
Material
Polycarbonate
Width
96 mm
Connection cross-section
0,5-2,5 mm²
Height
54 mm
Input voltage DC
12 V
Weight
0.078 kg
Min. temperature
-10 °C
Customs tariff number
85389091
Max. temperature
40 °C
Protection type (IP)
IP20
Input frequency
50 Hz
input voltage AC
230 V
Weight incl. packaging
0.078
Material
Polycarbonate
Protection type (IP)
IP20
Input voltage AC
230 V
Input frequency
50 Hz
Temperature range
-10 °C to 40 °C
Depth
54 mm
Width
96 mm
Height
54 mm
Weight
0.078 kg
Customs tariff number
85389091
Width
96 mm
Height
54 mm
Depth
54 mm
Weight
0.078 kg
Volume
0.000279936
Material
Polycarbonate
Connection cross-section
0,5-2,5 mm²
Input voltage DC
12 V
Min. temperature
-10 °C
Max. temperature
40 °C
Protection type (IP)
IP20
Input frequency
50 Hz
input voltage AC
230 V
Weight incl. packaging
0.078
