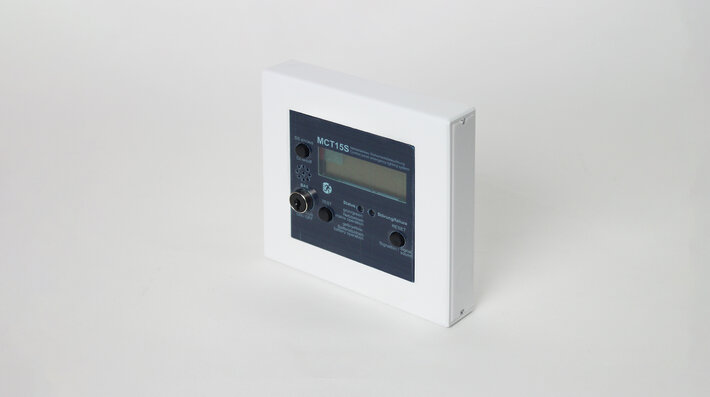

The MCT-15 indicator panel is the smart extension for emergency lighting systems of the multiControl series. It provides a clear, decentralized display of all relevant system statuses – visually via LEDs and plain text display, and acoustically in case of faults.
It indicates mains or battery operation, system faults, and the status of maintained light circuits. Additionally, it allows remote triggering of function tests, switching between operating modes, and controlling maintained circuits – optionally via integrated key switch.
An intuitive internal menu enables flexible configuration for various applications. Available in surface- or flush-mounted versions (MCT-15(S)/MCT-15U(S)), the device integrates easily into RS485 BUS networks.
Product data
Housing color
White
Customs tariff number
85371098
Protection type (IP)
IP20
Connection cross-section
0,4 - 0,8 mm²
Depth
116 mm
Input voltage DC
12 - 18 V
Width
24 mm
Protection type (IP)
IP20
Height
116 mm
Insulation class
3
Weight
0.17 kg
Housing color
White
Protection type (IP)
IP20
Depth
116 mm
Width
24 mm
Height
116 mm
Weight
0.17 kg
Customs tariff number
85371098
Connection cross-section
0,4 - 0,8 mm²
Input voltage DC
12 - 18 V
Protection type (IP)
IP20
Insulation class
3
