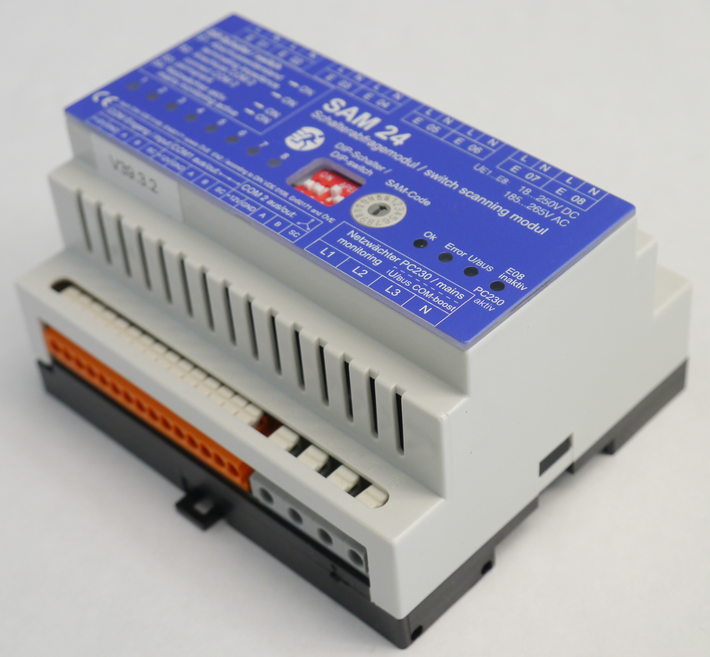

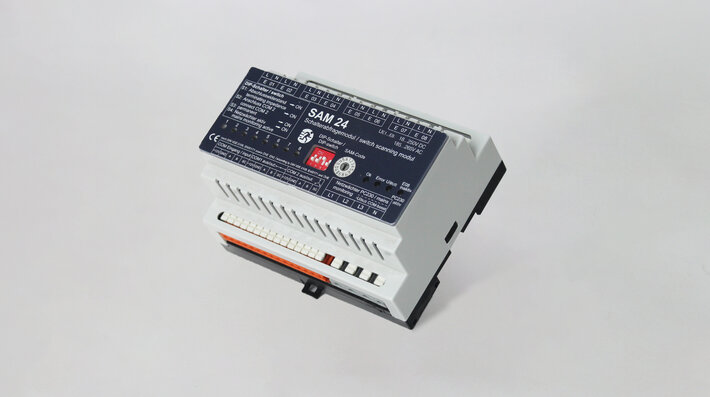

The SAM24 switch query module is a versatile interface between general and emergency lighting. It monitors up to eight switch states or voltage inputs (AC/DC) and transmits them via BUS to multiControl emergency lighting systems – enabling synchronized switching of emergency and general lighting.
With its integrated 3-phase mains monitor, COM port repeater, BUS supervision, and configurable DIP switches, the SAM24 is ideal for complex installations. Up to 16 modules can be connected using loop-through or star-shaped wiring.
Product data
Material
Polycarbonate
Monitoring
Included
Housing color
Anthracite
Connection cross-section
0,5-2,5 mm²
Protection type (IP)
IP20
Switching input
Yes
Temperature range
-10 °C to 40 °C
min. Input voltage AC
185 V
Depth
105 mm
Input frequency
50 / 60 Hz
Width
90 mm
Input voltage DC
18-255 V
Height
64,5 mm
Input voltage AC
255 V
Weight
0.29 kg
Protection type (IP)
IP20
Customs tariff number
85389091
Insulation class
2
Material
Polycarbonate
Housing color
Anthracite
Protection type (IP)
IP20
Temperature range
-10 °C to 40 °C
Depth
105 mm
Width
90 mm
Height
64,5 mm
Weight
0.29 kg
Customs tariff number
85389091
Monitoring
Included
Connection cross-section
0,5-2,5 mm²
Switching input
Yes
min. Input voltage AC
185 V
Input frequency
50 / 60 Hz
Input voltage DC
18-255 V
Input voltage AC
255 V
Protection type (IP)
IP20
Insulation class
2
