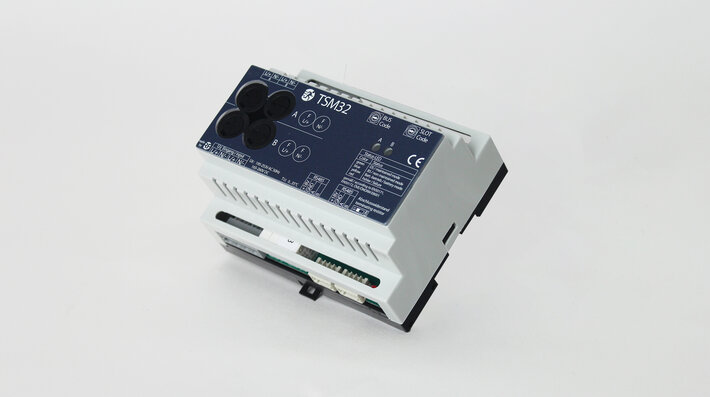

The TSM32 DIN rail circuit module is the ideal extension for multiControl plus emergency lighting systems. It supplies and monitors two independent circuits, each supporting up to 20 emergency or exit luminaires, and supports multiple operation modes including standby, maintained, and switched maintained lighting – all without the need for additional data cabling.
With individual luminaire monitoring, self-calibrating current supervision, and status LEDs for all operating conditions, the TSM32 ensures maximum safety and transparency. Integration is simple via the RS485 BUS, and installation is space-saving with DIN rail mounting – fully compliant with EN50171 and EN50172 standards.
Produktdata
materiale
plast
Høyde
60 mm
dybde
105 mm
dybde
105 mm
Bredde
86 mm
Vekt
0,202 kg
Høyde
60 mm
volum
0.0005418
Vekt
0,202 kg
materiale
plast
Tolltariffnummer
85389091
Vekt inkl. emballasje
0.202
Bredde
86 mm
materiale
plast
dybde
105 mm
Bredde
86 mm
Høyde
60 mm
Vekt
0,202 kg
Tolltariffnummer
85389091
Bredde
86 mm
Høyde
60 mm
dybde
105 mm
Vekt
0,202 kg
volum
0.0005418
materiale
plast
Vekt inkl. emballasje
0.202
