Emergency luminaire with ERT-LED for Trilux E-Line trunking rail profile with 7-wire through wiring. The innovative integrated lens carrier with quick-mounting device enables the flexible use of different lens types depending on the application. Round and corridor lenses are already included in the scope of delivery for each light and enable perfect adaptation to the respective installation situation. Additional lenses for high ceilings are available, too.
Control and monitoring via central power supply system.
Product data
Luminaire type
Emergency light
Supply
Centralised power supply systems
Mounting
3-phase conductor rail
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Metal
Operating mode
single luminaire switching
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
5,4 W
Insulation class
1
Power maintained
5,4 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

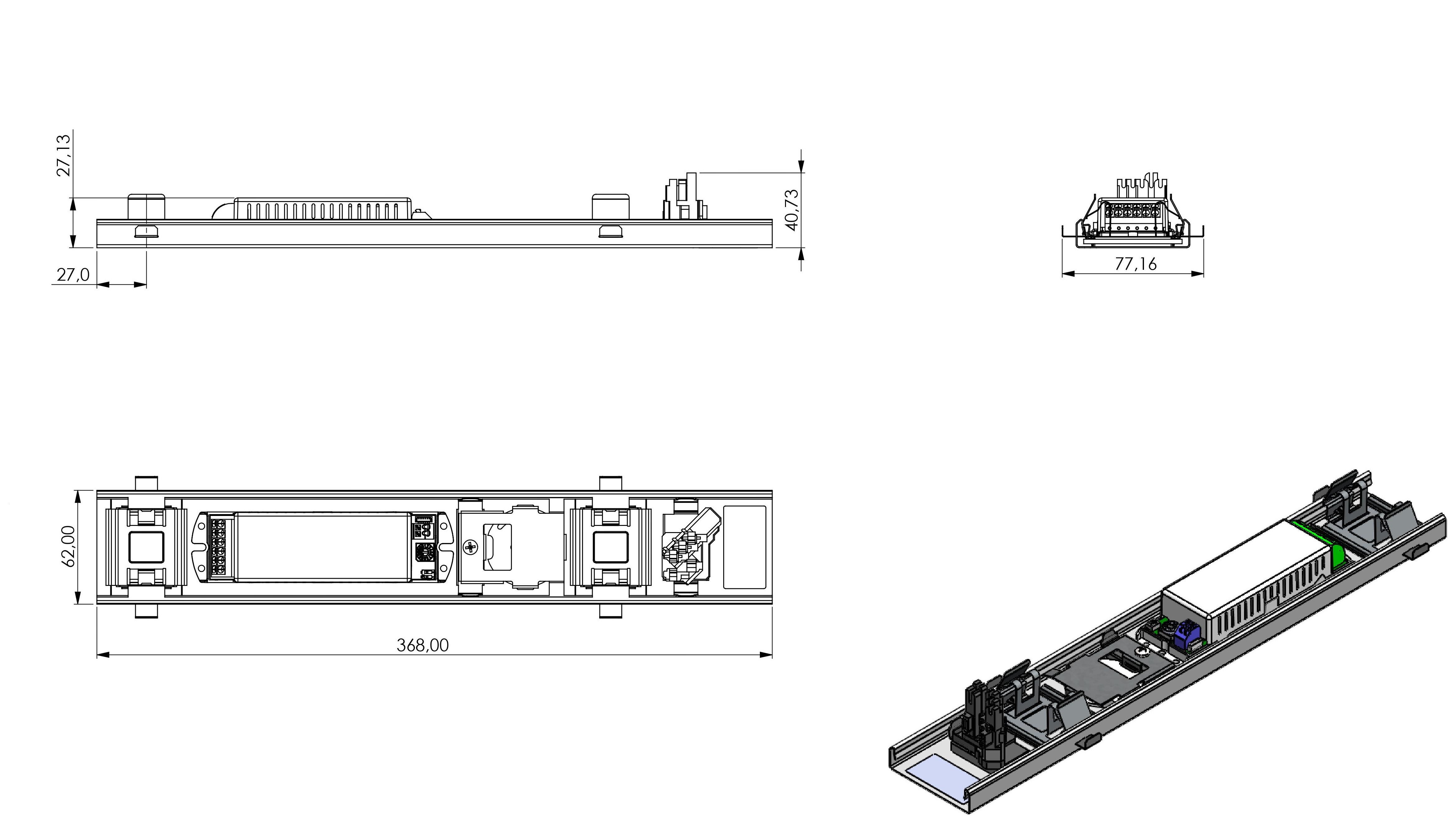

Depth
368 mm
Width
62 mm
Height
40.7 mm
Weight
0.37
Weight incl. packaging
0.52
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
470 lm
Luminous flux emergency
470 lm
Customs tariff number
94056180
EAN
4260682150448
Luminaire type
Emergency light
Mounting
3-phase conductor rail
Pictograph
No
Illuminant
LED
Housing material
Metal
Housing color
White
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
5,4 W
Power maintained
5,4 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
368 mm
Width
62 mm
Height
40.7 mm
Weight
0.37
Weight incl. packaging
0.52
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
470 lm
Luminous flux emergency
470 lm
Customs tariff number
94056180
EAN
4260682150448
Recommended areas of application
Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
DOWNLOADS
Accessories
text.product-details.lighting-technologie-data
The spacing table is based on the following parameters:
- l Maintenance factor: 0.80
- l Emergency lighting factor: 1.00
- l Minimum illuminance on centre line: 1.00 lx
- l Minimum illuminance on half of escape route width: 0.50 lx
- l Diversity on the centre line max. 40 : 1
- l Width of escape route: 2.00 m
| Mounting height |  |
 |
 |
 |
|---|---|---|---|---|
| 2.5 | 1.80 | 3.60 | 6.20 | 2.80 |
| 3 | 2.20 | 4.40 | 7.40 | 2.90 |
| 3.5 | 2.40 | 5.00 | 8.20 | 3.00 |
| 4 | 2.40 | 5.80 | 8.40 | 3.10 |
| 4.5 | 2.40 | 6.40 | 8.80 | 3.20 |
| 5 | 2.40 | 7.20 | 9.00 | 3.30 |
| 5.5 | 2.20 | 7.80 | 9.20 | 3.30 |
| 6 | 2.00 | 8.60 | 9.40 | 3.40 |
| 6.5 | 1.90 | 9.20 | 9.60 | 3.40 |
| 7 | 1.80 | 10.00 | 9.60 | 3.50 |
| 7.5 | 1.70 | 10.60 | 9.80 | 3.50 |
| 8 | 1.70 | 11.40 | 9.80 | 3.50 |
| 8.5 | 1.50 | 12.00 | 9.80 | 3.50 |
| 9 | 1.50 | 12.80 | 10.00 | 3.50 |
| 9.5 | 1.40 | 13.40 | 10.00 | 3.30 |
| 10 | 1.20 | 14.20 | 10.00 | 3.20 |
| 10.5 | 1.10 | 14.80 | 10.00 | 3.00 |
| 11 | 0.90 | 15.60 | 10.00 | 2.70 |
| 11.5 | 0.80 | 16.20 | 10.00 | 2.40 |
| 12 | 0.60 | 17.00 | 10.00 | 2.00 |
| 12.5 | 0.30 | 17.60 | 10.00 | 1.30 |
| 13 | 0.00 | 18.40 | 9.80 | 0.00 |
| 13.5 | 0.00 | 19.00 | 9.60 | 0.00 |
| 14 | 0.00 | 19.80 | 9.40 | 0.00 |
| 14.5 | 0.00 | 20.40 | 9.00 | 0.00 |
| 15 | 0.00 | 21.20 | 8.60 | 0.00 |
| 15.5 | 0.00 | 21.40 | 8.20 | 0.00 |
| 16 | 0.00 | 21.60 | 7.60 | 0.00 |
| 16.5 | 0.00 | 21.80 | 7.00 | 0.00 |
| 17 | 0.00 | 21.80 | 6.20 | 0.00 |
| 17.5 | 0.00 | 22.00 | 5.20 | 0.00 |
| 18 | 0.00 | 22.00 | 3.80 | 0.00 |
The spacing table is based on the following parameters:
- l Maintenance factor: 0.80
- l Emergency lighting factor: 1.00
- l Minimum illuminance on centre line: 1.00 lx
- l Minimum illuminance on half of escape route width: 0.50 lx
- l Diversity on the centre line max. 40 : 1
- l Width of escape route: 2.00 m
| Mounting height | |
|
|
|
|---|---|---|---|---|
| 2.5 | 2.40 | 4.80 | 4.80 | 2.40 |
| 3 | 2.90 | 5.80 | 5.80 | 2.90 |
| 3.5 | 3.20 | 6.80 | 6.80 | 3.20 |
| 4 | 3.50 | 7.80 | 7.80 | 3.50 |
| 4.5 | 3.80 | 8.60 | 8.60 | 3.80 |
| 5 | 4.10 | 9.20 | 9.20 | 4.10 |
| 5.5 | 4.40 | 9.80 | 9.80 | 4.40 |
| 6 | 4.70 | 10.20 | 10.20 | 4.70 |
| 6.5 | 4.90 | 10.80 | 10.80 | 4.90 |
| 7 | 5.10 | 11.40 | 11.40 | 5.10 |
| 7.5 | 5.30 | 12.00 | 12.00 | 5.30 |
| 8 | 5.50 | 12.60 | 12.60 | 5.50 |
| 8.5 | 5.60 | 13.20 | 13.20 | 5.60 |
| 9 | 5.70 | 13.60 | 13.60 | 5.70 |
| 9.5 | 5.70 | 14.00 | 14.00 | 5.70 |
| 10 | 5.80 | 14.40 | 14.40 | 5.80 |
| 10.5 | 5.80 | 14.80 | 14.80 | 5.80 |
| 11 | 5.80 | 15.20 | 15.20 | 5.80 |
| 11.5 | 5.70 | 15.40 | 15.40 | 5.70 |
| 12 | 5.70 | 15.80 | 15.80 | 5.70 |
| 12.5 | 5.60 | 16.00 | 16.00 | 5.60 |
| 13 | 5.50 | 16.00 | 16.00 | 5.50 |
| 13.5 | 5.40 | 16.20 | 16.20 | 5.40 |
| 14 | 5.20 | 16.40 | 16.40 | 5.20 |
| 14.5 | 5.00 | 16.40 | 16.40 | 5.00 |
| 15 | 4.90 | 16.40 | 16.40 | 4.90 |
| 15.5 | 4.70 | 16.40 | 16.40 | 4.70 |
| 16 | 4.40 | 16.20 | 16.20 | 4.40 |
| 16.5 | 4.10 | 16.20 | 16.20 | 4.10 |
| 17 | 3.80 | 16.00 | 16.00 | 3.80 |
| 17.5 | 3.40 | 15.80 | 15.80 | 3.40 |
| 18 | 2.90 | 15.60 | 15.60 | 2.90 |
| 18.5 | 2.10 | 15.40 | 15.40 | 2.10 |
| 19 | 0.30 | 15.20 | 15.20 | 0.30 |
| 19.5 | 0.00 | 14.80 | 14.80 | 0.00 |
| 20 | 0.00 | 14.60 | 14.60 | 0.00 |
The spacing table is based on the following parameters:
- l Maintenance factor: 0.80
- l Emergency lighting factor: 1.00
- l Minimum illuminance on centre line: 1.00 lx
- l Minimum illuminance on half of escape route width: 0.50 lx
- l Diversity on the centre line max. 40 : 1
- l Width of escape route: 2.00 m
| Mounting height | |
|
|
|
|---|---|---|---|---|
| 2.5 | 5.40 | 11.60 | 11.60 | 5.40 |
| 3 | 6.20 | 13.40 | 13.40 | 6.20 |
| 3.5 | 6.80 | 15.20 | 15.20 | 6.80 |
| 4 | 7.00 | 16.80 | 16.80 | 7.00 |
| 4.5 | 6.70 | 18.20 | 18.20 | 6.70 |
| 5 | 5.70 | 19.20 | 19.20 | 5.70 |
| 5.5 | 3.50 | 19.60 | 19.60 | 3.50 |
| 6 | 1.20 | 19.40 | 19.40 | 1.20 |
| 6.5 | 0.00 | 18.40 | 18.40 | 0.00 |
| 7 | 0.00 | 16.40 | 16.40 | 0.00 |
| 7.5 | 0.00 | 12.60 | 12.60 | 0.00 |
| 8 | 0.00 | 7.80 | 7.80 | 0.00 |
| 8.5 | 0.00 | 3.40 | 3.40 | 0.00 |
| 9 | 0.00 | 0.40 | 0.40 | 0.00 |
The spacing table is based on the following parameters:
- l Maintenance factor: 0.80
- l Emergency lighting factor: 1.00
- l Minimum illuminance on centre line: 1.00 lx
- l Minimum illuminance on half of escape route width: 0.50 lx
- l Diversity on the centre line max. 40 : 1
- l Width of escape route: 2.00 m
| Mounting height | |
|
|
|
|---|---|---|---|---|
| 2.5 | 8.60 | 19.00 | 8.80 | 3.40 |
| 3 | 9.70 | 21.60 | 9.20 | 3.50 |
| 3.5 | 10.80 | 24.20 | 9.40 | 3.50 |
| 4 | 11.40 | 26.40 | 9.60 | 3.60 |
| 4.5 | 11.70 | 28.60 | 9.80 | 3.60 |
| 5 | 11.90 | 30.40 | 9.80 | 3.60 |
| 5.5 | 11.50 | 31.80 | 10.00 | 3.60 |
| 6 | 6.70 | 32.80 | 10.20 | 3.50 |
| 6.5 | 5.20 | 33.40 | 10.20 | 3.30 |
| 7 | 3.50 | 33.60 | 10.20 | 2.90 |
| 7.5 | 2.40 | 33.20 | 10.20 | 1.60 |
| 8 | 0.00 | 25.40 | 10.20 | 0.00 |
| 8.5 | 0.00 | 18.80 | 10.00 | 0.00 |
| 9 | 0.00 | 15.80 | 9.40 | 0.00 |
| 9.5 | 0.00 | 12.60 | 8.80 | 0.00 |
| 10 | 0.00 | 9.20 | 8.00 | 0.00 |
| 10.5 | 0.00 | 7.00 | 6.00 | 0.00 |
