MI104

microControl plus (MI) Central battery system Combined housing

MICROCONTROL PLUS – THE BATTERY SYSTEM FOR SUPPLYING FIRE SECTIONS UP TO 900 W

The microControl plus (wall-mounted housing with battery compartment up to 9Ah) is a decentralised power supply system with restricted power for a 1-, 3- or 8-hour operating period, in accordance with DIN EN 50171 and DGUV V3 for supplying 230VAC / 216VDC safety and emergency exit sign luminaires. Suited to safety lighting systems in accordance with DIN VDE 0100-560, DIN EN 50172 and DIN V VDE V 0108-100, which can be equipped with up to 6 freely programmable circuits in an easy-to-service 19” modular system. Using the integrated automatic test equipment, up to 120 luminaires can be supplied, monitored and managed per system. An additional integrated auxiliary and control circuit is provided as standard.

Given the principle of decentralisation in fire sections, there is no need for costly E30 cable systems and installation of them in accordance with German standardisation. The microControl plus is installed in each fire section in an operating room. The use of standard luminaires with electronic ballast is ensured through the supply voltage (230VAC / 216VDC).

Batteries are not included and must be ordered separately.


Product data

Certification
TÜV Rheinland Type approved, CE
Outgoing SS/SD
No
Inserts
4 pcs.
Battery compartment
Yes
Number of DCM modules
2 pcs.
Supply power 1 h
900 W
Number of circuits
4
Supply power 3 h
400 W
Charger
Yes
Supply power 8 h
160 W
Number of charging modules
1 pcs.
Input voltage AC
230 V
Modules SAM
Yes
Input frequency
50 / 60 Hz
IO modules
Yes
Output voltage AC
230 V
CCIF
Yes
Material
Steel sheet
Networkable
Yes
Housing color
Light grey
Insulation class
IP20

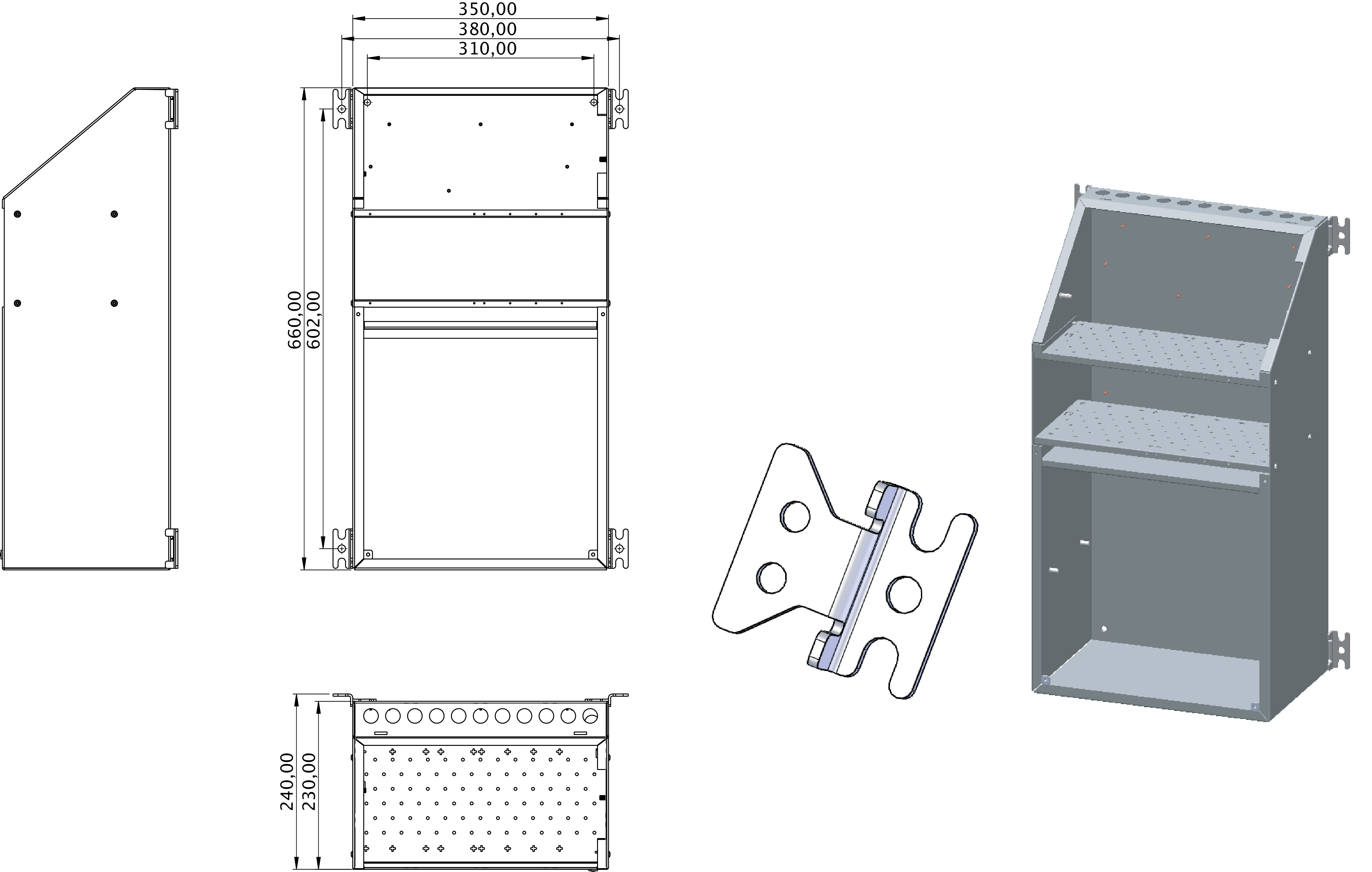

Depth
230 mm
Width
350 mm
Height
660 mm
Weight
22.4 kg
Weight incl. packaging
22,4 kg
Customs tariff number
85371098
GTIN
4262483027400
Certification
TÜV Rheinland Type approved, CE
Inserts
4 pcs.
Number of DCM modules
2 pcs.
Number of circuits
4
Charger
Yes
Number of charging modules
1 pcs.
Modules SAM
Yes
IO modules
Yes
CCIF
Yes
Networkable
Yes
Outgoing SS/SD
No
Battery compartment
Yes
Supply power 1 h
900 W
Supply power 3 h
400 W
Supply power 8 h
160 W
Input voltage AC
230 V
Input frequency
50 / 60 Hz
Output voltage AC
230 V
Material
Steel sheet
Housing color
Light grey
Insulation class
IP20
Depth
230 mm
Width
350 mm
Height
660 mm
Weight
22.4 kg
Weight incl. packaging
22,4 kg
Customs tariff number
85371098
GTIN
4262483027400
